Tyre/plastic oil to diesel distillation plant will recycle the tyre/plastic pyrolysis oil and then produce diesel oil and asphalt. These products all have some value. This non-standard diesel oil can be used for boiler heating or be used in heavy machinery like trucks, tractors, low speed engines, diesel generators, and agricultural machinery, etc. The asphalt could be used for paving, or directly sold to asphalt refineries for further refining.

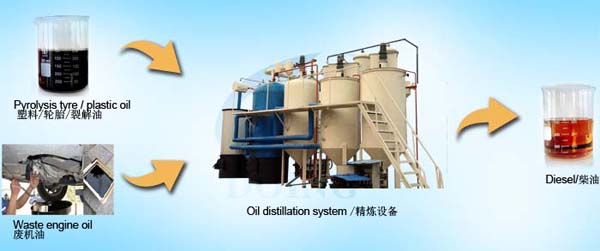

Tyre/plastic oil refined into diesel oil plant

The technology of tyre/plastic oil to diesel distillation plant is simple, but the oil yield can be as high as 80-85%. Now we can have a better idea about tyre/plastic oil to diesel distillation plant below. The process of tyre/plastic oil to diesel distillation plant includes distillation, cooling, decoloring and deodoring system , and then get clean and bright colored diesel oil finally.

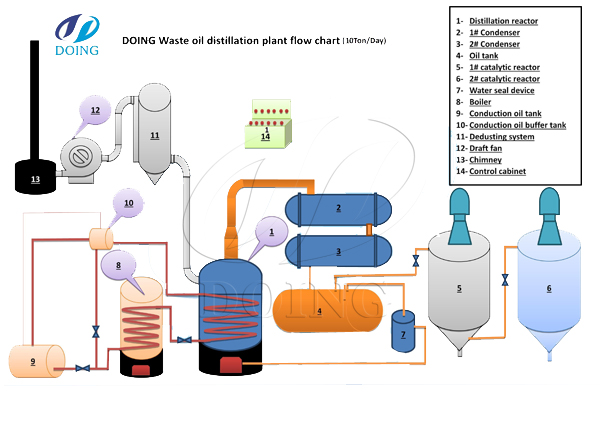

The process of tyre/plastic oil to diesel distillation plant:

Tire plastic pyrolysis oil to diesel distillation process

1.Distillation. Put tyre/plastic pyrolysis oil into distillation reactor then heat the reactor. When the temperature reaches a certain height, tyre/plastic oil will become oil gas and flow out from the distillation reactor.

2.Cooling. The oil gas come out from the distillation reactor would be cooled down to liquid oil through the cooling system , then flow into the tank.

3.Decoloring and deodoring system. Traditional design of tyre/plastic oil to diesel distillation plant is chemical acid and alkali catalyst process, which has relative low investment and is suitable for new investors. We Henan Doing Company also have new designed solid catalyst technology tire plastic oil to diesel distillation plant, which has higher efficency and high automation degree. After the tyre/plastic oil is distilled and separated from heavy impurities, it become light oil, but it still has heavy color and smell. So after distillation, there is still a decoloring and deodoring system to remove the heavy color and smell. After this process, you could get the normal color diesel product.

Diesel application extracted from tire plastic pyrolysis oil

Two significant advantages of DOING tyre/plastic oil to diesel distillation plant:

1. Except the normal heating method of which use oil or gas or coal heat the distillation reactor from the bottom, inside the reactor, there is heating transfer oil for heating. Tyre/plastic oil to diesel distillation plant has heating coiler inside the distillation reactor. Inside the coiler, there is a kind of heating transfer oil, which could be used for heating the waste oil. Both the two heating methods together, which could make the temperature rise fast and speed up the distillation process, thus to save time and increase the working efficiency.

Heating ways of pyrolysis oil distillation plant

2. The heating transfer oil inside the heating coiler could be recycled for circulation use, thus save a lot of heating fuel for you, and reduce the operation of tyre/plastic oil to diesel distillation plant cost.

Our devices are personalized. The color of the diesel directly produced from the standard distillation system is brown yellow. If you want to get better looking diesel oil, we can provide deep purification system for you. You can choose the one you like.

As we all know, waste oil comes from a wide range of sources. If the waste oil is not treated well, it not only comes into being resource waste, but also pollutes the environment. This tyre/plastic oil to diesel distillation plant can also dispose waste engine/motor oil, black heavy oil and other waste oil.

Waste oil to diesel distillation plant

More important of all, tyre/plastic oil to diesel distillation plant is simple to operate. It only need 2 workers per shift, that means the lower labor cost . As we all know the lower cost the higher profit you will get. If you only employ 2 workers and buy a set of tyre/plastic oil to diesel distillation plant, you can make a profit. That is so easy! What do you think about? Welcome to Henan Doing Mechanical Equipment Co., Ltd ! I believe it's your best choice. As a leading manufacturer, we have rich installation project cases and can offer high quality waste oil to diesel distillation plant at factory price!
