Waste rubber pyrolysis plant

Cooling System:
a> Inside of horizontal condenser have 61 smaller pipes, the diameter of which is 48mm. Cooling area of each condenser can reach 50 square meters.
b> the whole cooling areas will be 100 squres meters. So it can guarantee oil gas maximumly cooling down to guarantee oil output.
c> Devided into 3 parts easy to insall and easy for clearance.

Support Rollers:
a> 4 rollers to support the pyrolysis reactor.
b> Each roller can bear 5ton pressure.
c> Casting steel as the roller material not easy to deformed.
d> With DOING special design for rollers to avoid the reactor run off from roller. Keep machine safety running.
e> More safe, Long service life.

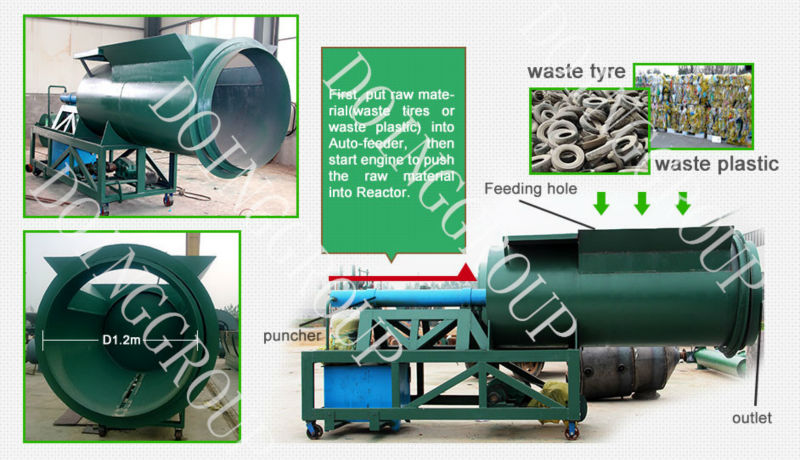

Auto-Feeder:
a> 60 tons hydraulic pressure.
b> Suitable to all kinds of materials.
c> Take steel out of the reator.
d>Save time, save labour, save energy.

DY-1-10t  2600*6600

Thickness of Reactor

Cooling area of Condenser
