Pyrolysis Plant/Best Price from Top Manufacturer

DOING pyrolysis plant is always an excellent choice for those who do environment-friendly business. Through pyrolysis technology, the waste tyre, rubber, plastic, waste oil sludge, coal tar oil, etc can be converted to pyrolysis oil and carbon black which has high economic value in our daily life. Customers even get other by-products (steel wire). Therefore, investing in a waste pyrolysis plant means contributing to economic progress and environmental development. Henan Doing Company offers a one-stop service and installment service. Just leave your requirement to us.

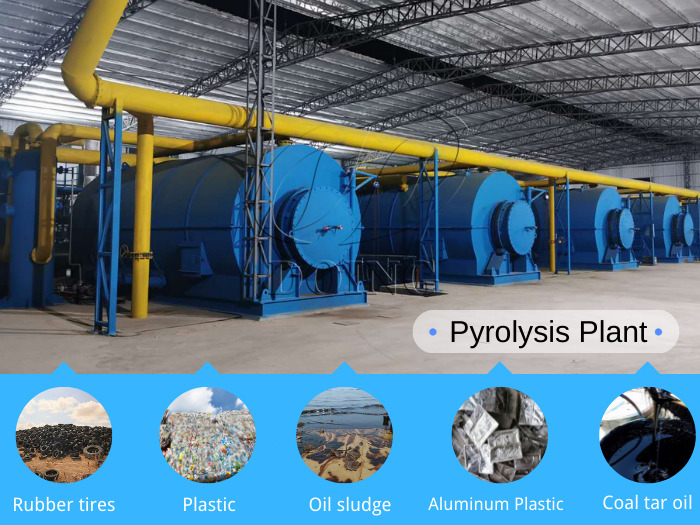

DOING Waste Pyrolysis Plant Installed in Different countries

What Kinds of Raw Materials Can be Pyrolyzed by DOING Pyrolysis Plant?

There are three main types of materials can be well converted into good oil and carbon black by DOING Pyrolysis Plant: used tyre, rubber, oil sludge and plastic. These materials are easily got in our daily life. At present, they bring potential harm to the environment. DOING waste pyrolysis plant is able to dispose of this waste well. And this equipment will assist customers to earn high benefits. Besides, there is little difference in the final products produced by tyre and plastic. Customers can get extra steel wire from tire.

Raw materials that pyrolysis can disposal

What are Usages of End Products Getting from MSW Pyrolysis Plant?

The applications of pyrolysis products

Basic Parameter of DOING Pyrolysis Plant for Sale

There are mainly four kinds of waste pyrolysis plant DOING can customize for you: fully continuous pyrolysis plant, semi-continuous pyrolysis plant, batch pyrolysis plant, free installation skid-mounted pyrolysis plant. The daily process capacity of DOING pyrolysis plant is from 100KG to 50+TPD,etc.

DOING  company different types pyrolysis plants

How Does a Pyrolysis Plant Work?

(1)Feeding & Preheating

Put materials into reactor by the sealed screw conveyor. When fuel energy provides heat for reactor, reaction process begins.

(2)Pyrolysis

When temperature reaches to 100+ degree, oil gas will be generated. After entering manifold, condenser and hydroseal, the combustible gas can be recycled to provide heat for reactor again.

(3)Clean Smoke

In the pyrolysis plant reactor, there is hot waste smoke. These smoke will be discharged after reprocessed by de-dusting system. Cleaned smoke meets European emission standards.

(4)Final Products Discharging

Oil will drop into the oil tank. If you have intention to further reprocess final products, consult us. We will provide the most appropriate plan for you.

Here let’s take the waste tires as an example, let’s see the working process of DOING Pyrolysis Plant.

Advantages of DOING Pyrolysis Plant Design

(1)Difference of DOING Pyrolysis Plant Design

• Besides two holes for gas and carbon black in the screw discharger, DOING has an extra hole for maintaining and cleaning. This design helps to prolong the discharger’s lifetime.

• According to customers’ requirements, DOING provides custom service for the materials to keep the temperature of the base and the casing inner. A ceramic module is a good option. Besides good keeping-warm effectiveness, it is convenient to transport, install and disassemble.

(2)Environmental-friendly DOING Pyrolysis Plant

• This project won’t discharge polluted water. The heat exchange water inner condenser is separated with oil gas, which doesn’t contain harmful materials.

• There is a combustion chamber for burning extra combustible gas.

• The atomization tower will purify the smoke. The final discharged smoke meets emission standards.

• For final products, this plant is equipped with the related tank or device to collect them.

Environmental protection equipment of pyrpolysis plant

(3)How to Guarantee Safety?

• Every set of sealed rubber pyrolysis reactor is equipped with a thermometer, pressure gauge, and discharging valve to guarantee the security of workers and plant.

• A part of exhaust gas can’t be liquefied, like the alkanes class from C1 to C4. Through water seals, they are purified. Then it is safe to burn again in the combustion chamber.

• With auto welding technology support, DOING machine not only has high working efficiency but also has good quality.

• Our newest generation of heating is combined with direct and indirect heating. It makes the production process safe and saves fuel.

• Some parts can be applied to avoid explosions, like hydroseal, manifold, damping cans, etc. (4)Is There Custom Service for Pyrolysis Reactor Door?

• According to your requirement, we can design a suitable shape and size for your reactor door. In some projects, the square door makes the process more efficient compared with the rod door because of the raw material and feeding method.

• Besides, consider abrasion and heat resistance, the dowel bush, location ring, and gear driving system have a new design. These designs will let this machine serve investors for a long time. When you need to customize these parts, just leave your requirement to DOING now.

• The reactor is related to the safety of the whole production line. The following things you should consider, for example, materials, shape, seals, heat resistance. DOING will tell you how to get a suitable one.
