Thermal Desorption Unit For Oil Sludge Treatment
Thermal desorption unit for oil sludge treatment
The oil sludge thermal desorption unit(TDU), also called oil sludge thermal pyrolysis machine, independently developed by Henan Doing Group can process various types of oily sludge (HWO8 type) such as oilfield oily sludge, refinery oily sludge, tank bottom oily sludge, coal tar residue, oil-based drill cuttings, oil-contaminated waste, ground oily sludge, and coastline oily pollutants.
After treatment, pyrolytic mineral oil and ash residue are obtained. Pyrolytic mineral oil can be used as feedstock oil for refineries or directly as fuel oil. The oil content in the ash residue is less than 2%. Next, DOING Group will detail the processing technology and equipment advantages of the sludge thermal desorption unit.
Pyrolysis Technology of Oil Sludge Thermal Desorption Unit

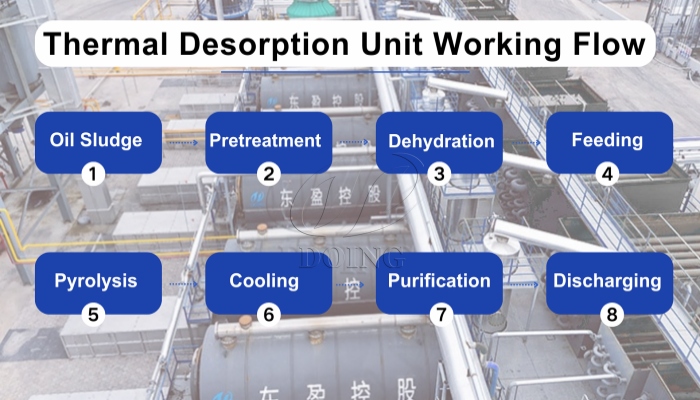

Oil sludge thermal desorption unit working flow
1. Preliminary treatment: First, the sludge is treated to remove large solid phases, such as bricks and stones, and metals, and then the sludge is sent into the pyrolysis converter for high-temperature heating through an automatic feeder;
2. Dehydration: If the water content in the sludge is high, different types of sludge dehydration devices can be configured to achieve better drying and pyrolysis efficiency and effectiveness, reduce energy consumption, and ensure the safety of the entire sludge treatment and recovery process.
3. Feeding: Customizable configurations are available based on the specific form of oily sludge and the choice of equipment, including automatic conveyors, sludge pumps, etc.
4. Thermal Pyrolysis: The sludge is heated at high temperatures in a thermal pyrolysis reactor. When the temperature exceeds 100°C, water is gradually distilled out. When heated to above 180°C, mineral oil is gradually distilled out;
5. Cooling: After the distilled components are cooled and collected, they are condensed into liquid mineral oil and water; after subsequent water-oil separation treatment, the mineral oil is sent to the oil storage tank for storage;
6. Exhaust gas purification: The remaining part of the gas that cannot be cooled is directly recycled for heating secondary utilization after exhaust gas purification treatment; and the flue gas generated during the pyrolysis process can meet the emission standards after purification by the desulfurization tower + water film dust removal purification treatment;
7. Ash discharge: When the pyrolysis is completed and the temperature of the pyrolysis furnace drops to about 50°C, the rotation direction of the converter is changed to counterclockwise, and the dry distillation slag is discharged through the dry distillation slag discharger under the push of the reverse rotation of the converter.
Advantages of Oil Sludge Thermal Desorption Unit

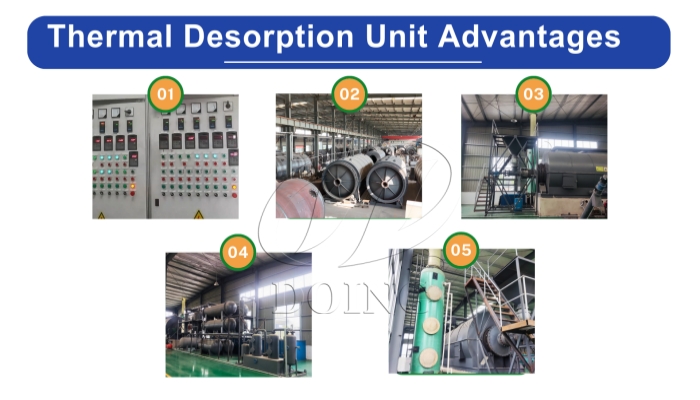

DOING waste oil sludge thermal desorption unit advantages
Advantage 1: PLC control system is adopted, which can be operated automatically and intelligently, with high degree of automation and high production efficiency;
Advantage 2: The reactor adopts arc-shaped pressure-resistant head design, which can withstand high temperature and high pressure, one-piece pressing, not easy to crack, high safety factor, and durable equipment; and the equipment can be equipped with anti-coking device and reactor material selection according to needs, which makes equipment operation and subsequent maintenance more convenient;
Advantage 3: Unique sealed feeding and slag discharge system to ensure the transportation of solid products in closed equipment and pipelines, ensuring the safety and environmental protection of the production process;
Advantage: 4: Multi-stage condenser design, buffer tank and vertical&horizontal condensers, to ensure sufficient cooling of oil and gas, improve condensation efficiency and oil yield;
Advantage 5: Proprietary combined flue gas exhaust purification system to ensure that all emissions meet the EU EEA and US EPA standards, clean and pollution-free.
Cost of thermal desorption unit for oil sludge treatment
DOING oil sludge thermal desorption unit for sale
The selling price of a thermal desorption unit can range from tens of thousands of dollars to millions of dollars, depending on its size, equipment type, and specific equipment material selection and configuration. If you have a business plan to set up an oil sludge thermal desorption project and want to know if it is affordable, you only need to contact the manufacturer or supplier directly and provide them with your requirements and specifications. Feel free to contact Henan Doing Company, a manufacturer of thermal desorption units with expertise and a professional technical team, for accurate machine costs.
DOING thermal desorption units for oil sludge treatment ensures that the entire production process is continuous, stable, reliable and leak-free. It is characterized by low operating costs, safety, energy savings and environmental protection. It largely cuts out possible safety hazards, conforms to industry trends and is a safe and environmentally friendly oil sludge treatment pyrolysis machine encouraged by the government. Here is one successful oil sludge thermal pyrolysis unit operation site for your reference:
In the face of relatively large market demand and increasingly stringent industry standards, Henan DOING Group will continue to deepen the field of oil sludge thermal desorption units, realize industrial promotion under the premise of safety and environmental protection, and truly help our clients turn waste into treasure.
