Addressing waste oil challenges in Africa recycling used oil to diesel

Africa's automotive and industrial sectors are experiencing rapid growth, driven by urbanization, infrastructure development, and increasing vehicle ownership. This boom, however, comes at a significant environmental cost. According to estimates from the United Nations Environment Programme (UNEP), Africa generates over 5 million tons of waste engine oil annually, much of it from used motor oils, lubricants, and industrial byproducts. This byproduct, if mishandled, poses severe environmental and health risks, contaminating soil and water resources.

However, within this critical issue lies a profound opportunity. As a manufacturer of waste recycling and energy conversion equipment with over a decade of experience, DOING can introduce you to a solution specifically designed for waste oil recycling – waste oil distillation system.This system can efficiently convert waste engine oil, crude oil, pyrolysis oil, heavy oil, and waste lubricating oil into diesel fuel.

Waste oil distillation to diesel technology

DOING waste oil distillation system uses advanced distillation technology to remove impurities such as metals, dirt, and chemical byproducts, thereby obtaining clean diesel fuel. The process typically includes three key stages: pretreatment (filtration and heating to remove moisture and solids), distillation (fractionation under controlled temperature conditions to ultimately obtain diesel fuel with a recovery rate of over 85%), and purification (removing impurities through chemical catalysis). We offer two principal systems to meet different operational needs and scales:

The traditional acid-base washing and distillation system is a time-tested and highly reliable method for processing waste oil. This mature technology begins with a crucial chemical purification stage. The initial oil obtained from distillation is treated with an acid-base liquid solution, which effectively neutralizes and breaks down harmful contaminants and impurities. Following this chemical treatment, a bleaching clay process further refines the oil. Bleaching clay, a natural adsorbent, physically removes suspended particles and residual color, significantly enhancing the oil's clarity and overall quality. This proven methodology demonstrates exceptional performance in impurity removal and producing high-purity recycled diesel at a relatively low initial investment. This is a relatively simple and reliable option for many African companies looking to enter the waste oil recycling sector.

DOING's innovative catalyst distillation system harnesses the power of a specialized solid catalyst to efficiently convert waste oil into clean diesel fuel. DOING solid catalytic process uses a proprietary catalyst—a composite material packed in the distillation column—to promote efficient molecular cracking. The distilled waste oil vapor is fed into the catalytic tower for catalytic decomposition into shorter diesel-grade molecules. After condensation, it enters a decolorizing pot for decolorization, and then undergoes further fine filtration using a bag filter to obtain the final diesel fuel. This catalytic approach significantly shortens the overall processing time, leading to substantially higher operational efficiency and reducing energy consumption, thereby lowering fuel costs.

Compared to traditional methods, the advanced catalyst distillation system is considerably more environmentally friendly. It generates less waste and significantly fewer emissions, making it perfect for modern, high-volume operations.

Products and Their Applications

The waste oil distillation process yields two main products: non-standard diesel and asphalt residue.

Non-standard diesel, which meets basic fuel requirements but not fully comply with standards, serves as an effective fuel for generators, boilers, and heavy machinery. In areas with frequent power outages, this diesel powers off-grid electricity and supports farming equipment or small factories. It provides a local alternative to imported fuels, helping businesses maintain operations without high costs.

The asphalt residue, a thick byproduct from the heavier oil fractions, can be used in road construction, roofing, and waterproofing materials. In growing urban areas across Africa, this material aids infrastructure projects by providing an affordable option for paving roads or sealing surfaces.

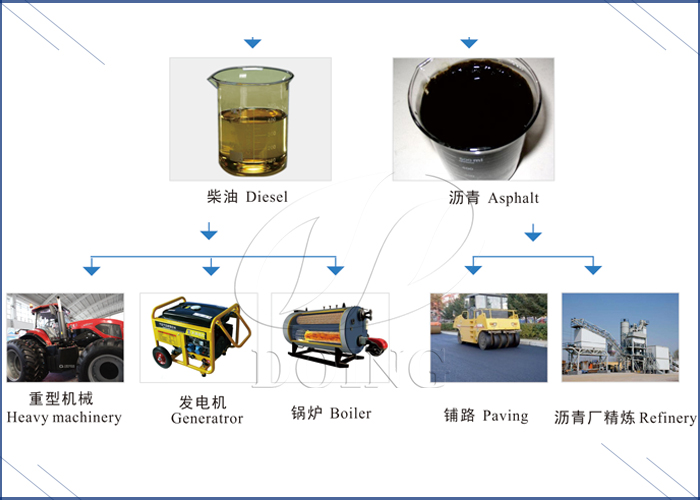

Applications of waste oil distillation products

Scalable Capacity Options for Every Operation

DOING's waste oil distillation systems are designed with flexibility in mind, offering a range of capacities to suit startups, mid-sized enterprises, or large industrial facilities. Our batch-processing models include 1-ton, 3-ton, 5-ton, 7-ton, 10-ton, and up to 14-ton units per cycle, allowing customization based on daily waste oil intake and diesel output goals. Smaller units are portable and easy to install, while larger ones integrate with existing refineries. We also provide modular expansions, enabling businesses to scale as their operations grow, with full technical support including site assessments and training tailored to African contexts.

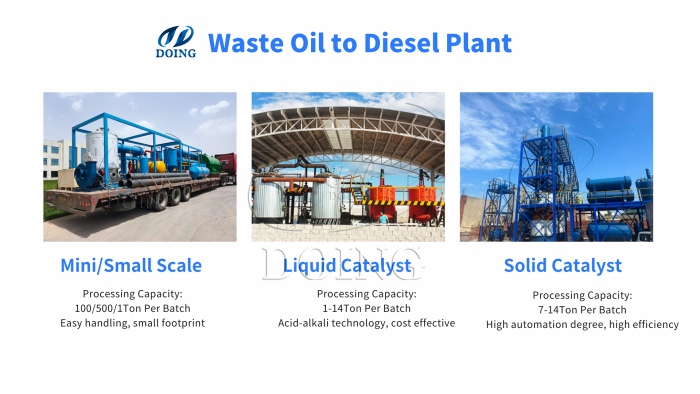

DOING waste oil distillation system types

How Waste Oil Distillation Systems Help Africa Address Waste Oil Challenges:

Converting waste oil into diesel is an engineering practice with both environmental and economic potential. Through waste oil distillation system, African businesses can address their waste oil challenges more efficiently, while increasing energy independence, reducing operating costs, and driving continuous improvement in local industries.

DOING waste oil distillation system manufacturer

If you are ready to tackle your waste oil crisis or would like to learn more about waste oil recycling and distillation systems in Africa, please contact DOING. Our team of experts looks forward to discussing customized solutions with you and providing you with detailed information on models, installation, and support. We have extensive project installation experience in Africa, including Nigeria, South Africa, Mali, Ghana, Egypt, Libya, Tanzania, Congo, Zambia, and Côte d'Ivoire. We have also established an overseas office in Nigeria, which allows us to respond to customer needs more quickly and provide corresponding services.
